In Highland, CA 92346: The Pressure Story Behind Dripping TPR Valves
1980s-2000s suburban growth city: large ranch and two-story tracts, citrus-grove-era parcels subdivided late. Copper and CPVC in 1980s-2000s tracts; galvanized in older east Highland pockets bring water into homes where regulators and check valves have closed the system — thermal expansion has nowhere to go except out the TPR valve. Nearly everything sits on slab, which puts tankless units on garage walls where a leak announces itself on the concrete. Santa Ana wind events coat exterior units in fine dust that works into seals, which is why exterior discharge terminations get checked for nests and debris. The area's main corridors (SR-210 (Foothill Freeway), SR-330 (to Big Bear), Baseline St, San Manuel area to the north, Santa Ana River wash to the south).
The area's main corridors (SR-210 (Foothill Freeway), SR-330 (to Big Bear), Baseline St, San Manuel area to the north, Santa Ana River wash to the south). 1980s-2000s suburban growth city: large ranch and two-story tracts, citrus-grove-era parcels subdivided late. Hot summers 100F+, Santa Ana winds, winter rain; very hard water — heat, hardness, and closed systems: the three things that make Highland TPR valves drip, weep, and eventually fail. Nearly everything sits on slab, which puts tankless units on garage walls where a leak announces itself on the concrete, so discharge routing varies house to house, and the replacement visit has to get it right each time.
Nearly everything sits on slab, which puts tankless units on garage walls where a leak announces itself on the concrete, which is where the discharge pipe has to go — and in Highland that routing matters, because a discharge that cannot drain freely turns a safety device into a liability. Hot summers 100F+, Santa Ana winds, winter rain; very hard water. Every heating cycle expands the water; in the closed systems common across 92346, that expansion leans on the TPR valve. 1980s-2000s suburban growth city: large ranch and two-story tracts, citrus-grove-era parcels subdivided late. The area's main corridors (SR-210 (Foothill Freeway), SR-330 (to Big Bear), Baseline St, San Manuel area to the north, Santa Ana River wash to the south) cross the area, and the pressure story is the same on both sides.
TPR Valve Symptoms: Drip, Weep, or Discharge
Watch the discharge pipe, not the valve — the pipe is where the evidence lands. Intermittent dripping that coincides with the burner firing points at thermal expansion overwhelming a failed expansion tank. Constant weeping at all hours points at high static pressure or a scaled seat. A sudden full discharge that soaks the area means the valve opened on a genuine over-temperature or over-pressure event, and the cause needs finding before the valve is reset into service. And test the lever yearly: lift it briefly and let it snap shut. If no water flows, the valve is seized shut and must be replaced. If it flows and will not stop, the seat is fouled and the valve must be replaced. Either way, the test that fails is the test that just earned its keep.
The discharge termination tells the history. White mineral crust at the pipe end means months of slow weeping — pressure or a scaled seat, working on the valve a little every day. A clean pipe that suddenly runs hot water means an event: the valve opened wide, did its job, and something upstream needs diagnosis now. No discharge ever, on a valve nobody has tested in years, is its own warning — TPR valves seize with age and scale, and a seized valve is a missing safety device. Also check where the pipe ends: it should terminate where a scalding discharge harms nothing and where you can see it. A discharge pipe that vanishes into a wall or ends where nobody looks hides the very warning it exists to give.
A steady drip from the discharge pipe is the signature symptom — not a gush, just a persistent weep that keeps the pipe damp and leaves mineral crust at the termination. That pattern means the valve is relieving pressure or temperature it should not have to relieve, or its seat is scaled and cannot seal. A valve that discharges heavily and then stops usually did its job during a real overpressure or overheat event; that one deserves immediate diagnosis of what caused the event. A valve that does nothing when you lift the test lever is the most dangerous of all — it has seized, and the safety net is gone. Water pooling at the base of the heater that tracks back to the discharge pipe, a pipe that is hot to the touch when no hot water has run, and a termination point that steams are all TPR stories. None of them are 'just a drip.'

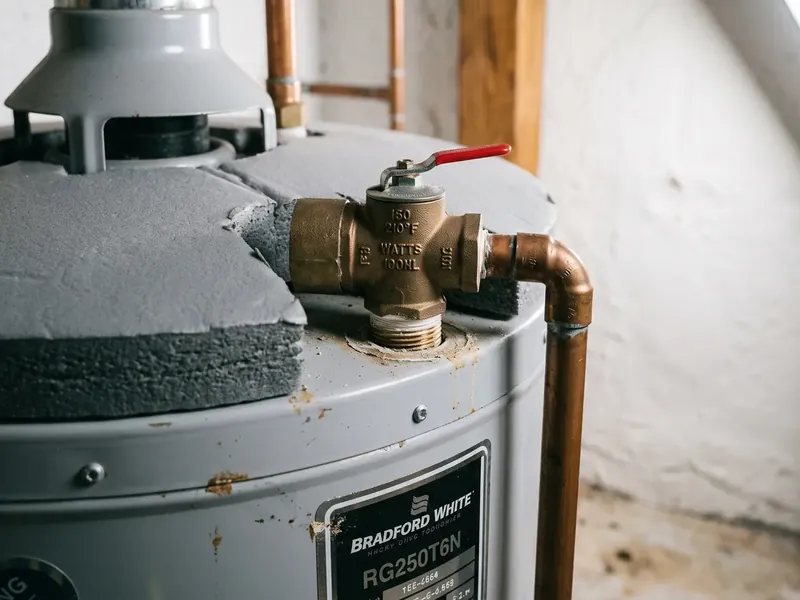

Replacing the Valve — and Fixing What Killed It
Diagnosis first, because the valve is usually the messenger. Static pressure over 80 psi, an expansion tank with no air charge, and a scaled valve seat form the classic trio — the visit tests all three. With the tank cool and the water off, the failed valve unthreads from its tapping and the replacement threads in, rated to the tank's specs and sealed properly. The discharge pipe gets rebuilt to code while the tech is there: full pipe size maintained, no reductions, no threaded end that invites a cap, pitched to drain, terminating where scalding water cannot hit a person and where a future drip will be seen. Refill, purge air, fire the burner, and verify through a full cycle — steady pressure, dry valve, clean cut-out. The paperwork on the valve rating stays with the heater.
Expect a systems check, not a part swap. The tech measures house pressure and expansion-tank charge before touching the valve, because a new TPR on a dead expansion tank just becomes the next dripping valve. Replacement happens on a cool, depressurized tank: old valve out, new valve in with the correct temperature and pressure ratings for that specific tank, threads sealed, orientation correct. The discharge piping gets the same attention as the valve — full diameter, gravity-pitched, unobstructed, terminating visibly and safely. Then the whole system is proven: refill, air purge, fire, and a full heating cycle with the gauge watched. Pressure steady, valve dry, discharge path clear — that is a finished TPR job, not just a new part on an old problem.
The visit starts with pressure, not parts. The tech puts a gauge on a hose bib or the tank drain and reads static pressure, then watches what happens through a heating cycle — thermal expansion spikes reveal a failed expansion tank faster than any guess. The expansion tank gets tested: air charge checked against house pressure, replaced or recharged if waterlogged. Only then does the TPR valve come out — with the tank cooled and depressurized, the old valve unthreads and a new one rated for the tank's temperature and pressure goes in with proper thread sealant. The discharge pipe is refitted full-size, pitched downward, with no threads, caps, or valves on its end, terminating 6 inches above a floor drain or outside where discharge is visible and harmless. The system is refilled, fired, and watched: pressure must hold steady through the cycle and the new valve must stay dry.
Highland Pressure, Heat, and Scale: The TPR Killers
Three forces conspire here. Thermal expansion leads: Hot summers 100F+, Santa Ana winds, winter rain; very hard water, and most 92346 homes sit on closed systems — pressure regulators, check valves, softeners — so every heating cycle squeezes water with nowhere to go, and the expansion tank is supposed to absorb it. When that tank fails, the TPR valve absorbs it instead, weeping a little every cycle until its seat gives out. Static pressure follows: foothill-edge and hillside areas run high municipal pressure, and anything much past 80 psi keeps the valve perpetually near its relief point. Third is scale: with very hard water crusts the valve seat until it cannot seal, so the valve drips at pressures it should easily hold. A full generation of 1980s-90s tanks is failing now; hard water sediment bakes into a concrete-like layer at tank bottoms here, causing rumbling, overheating, and premature tank failure — flushing history matters more than age on these calls. The replacement that lasts is the one that fixes the pressure story, not just the valve.
The local failure pattern is pressure first, scale second, heat third. Closed plumbing systems trap thermal expansion; failed expansion tanks hand that expansion to the TPR valve; the valve weeps every cycle and its seat wears. Hot summers 100F+, Santa Ana winds, winter rain; very hard water. Meanwhile hard-water minerals plate the seat until sealing becomes impossible — the valve that weeps constantly despite normal pressure is usually scaled, not broken. A full generation of 1980s-90s tanks is failing now; hard water sediment bakes into a concrete-like layer at tank bottoms here, causing rumbling, overheating, and premature tank failure — flushing history matters more than age on these calls. Garage heat weakens the spring over years, lowering the relief point until normal operation looks like an emergency to the valve. A proper Highland TPR visit therefore tests pressure, tank charge, and seat condition as one system — replacing the valve without that workup is how the new valve starts dripping by next season.
Protecting the New Valve in Highland Conditions
The new valve's lifespan is decided by the system around it. Test the lever yearly — a brief lift that snaps shut cleanly; any failure mode means replacement, not adjustment. Keep the expansion tank charged: check its air pressure annually against house pressure, because a waterlogged tank silently transfers its job back to the TPR valve. Hot summers 100F+, Santa Ana winds, winter rain; very hard water — if static pressure runs high, a regulator protects every valve and fixture in the house, not just the TPR. The rare freeze night is all it takes to split an uninsulated exterior fitting, so keep the discharge termination clear and visible; a blocked or frozen termination traps the very discharge the valve exists to release. And never cap, plug, or valve the discharge pipe — the most dangerous TPR in Highland is the one someone 'fixed' by stopping the drip.
Think system, not part. Annual lever test, annual expansion-tank charge check, and a glance at the discharge termination each season — that is the whole maintenance list, and it takes ten minutes. With very hard water, so if the old valve died scaled, consider the flush schedule that keeps minerals off the new seat. Santa Ana wind events coat exterior units in fine dust that works into seals, and exterior terminations should be checked for debris that could block a discharge. Watch the gauge reading the tech leaves you: if house pressure creeps up over the years, the regulator — not the TPR valve — is what needs attention. A balanced system keeps the new valve dry and ready, which is exactly what a safety device should be.
